Ball Valve with Limit Switch

DocumentDownload Datasheet

BVC2 (Limit Switch)

Construction ApplicationsTools ApplicationsIndustrial ApplicationsAgricultural Applications

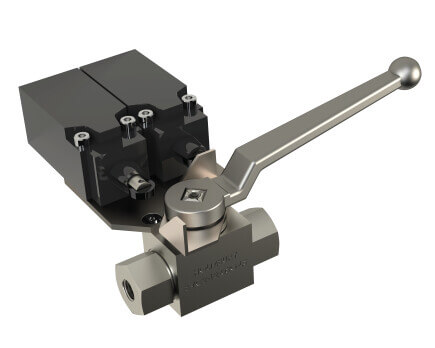

Holmburys’s BVC2 Series two-way high-pressure ball valve
with an integrated positional detection device. When closed,
a limit switch will send an electrical signal to a remote display
to monitor the “open” or “closed” state.
Speciality Coupling TechSpeciality Coupling
Carbon Steel Trivalent Materials
Ball ValvesBall Valve with Limit Switch

Features

• Floating ball design maximises sealing• Full bore valves provide unrestricted flow path for   negligible pressure drop• Open to close in 1/4 turn• Offset handle allows clearance for easy operation• Positional Switch: AC 380V DC 220V 5A

Construction

• Carbon steel body with trivalent plating• Zinc alloy handle• Forged steel option available• Fitted with NBR and POM seals as standard• Also available in AISI 316 stainless steel(See BVS2 Series)

Applications

• Construction• Mobile Hydraulics• Test Equipment• Machine Tools• General Hydraulics• Agricultural

AVAILABLE SEALS AND TEMPERATURE RANGE

All carbon steel products have Nitrile Butadiene Rubber seals fitted as standard. All stainless steel products have Fluoro-elastomer Rubber (Viton®) seals fitted as standard. Special seal materials available on request.

0°

106°C 223°F

Nitrile

120°C 248°F

EPDM

200°C 392°F

Viton®

300°C 572°F

Kalrez®

0°

-20°C -4°F

Viton®

-25°C -13°F

Kalrez®

-40°C -40°F

Nitrile

-50°C -58°F

EPDM

Abbreviation Trade Name Chemical Name Min Temp. Max Temp.
NBR XNBR Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® Nitrile Butadiene Rubber Carboxylated Nitrile Rubber -40°C (-40°F) 106°C (223°F)
FKM (FPM) Dai-el®, Fluorel®, Tecnoflon®, Viton® Fluoro-elastomer Rubber -20°C (-4°F) 200°C (392°F)
EPR EPDM Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® Ethylene Propylene Copolymer Ethylene Propylene Terpolymer -50°C (-58°F) 120°C (248°F)
FVMQ Silastic 1S®, FSE® Fluorosilicone Rubber -65°C (-85°F) 170°C (338°F)
FFKM Perlast®, Kalrez®, Chemraz®, Kaflon® Perfluoroelastomer -25°C (-13°F) 300°C (572°F)
