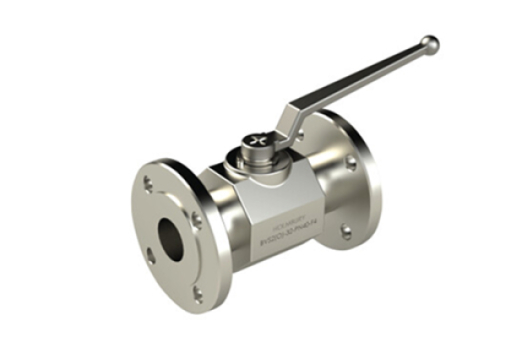

BVC2 (Flanged PN40)

DocumentDownload Datasheet

BVC2 (Flanged PN40)

Construction ApplicationsTools ApplicationsIndustrial ApplicationsAgricultural Applications

• Carbon steel body with trivalent plating
• Zinc alloy handle
• Forged steel option available
• Fitted with NBR and POM seals as standard
• Also available in AISI 316 stainless steel
(See BVS2 Series)
Carbon Steel Trivalent Materials
Ball ValvesBVC2 (Flanged PN40)

Features

• Floating ball design maximises sealing• Full bore valves provide unrestricted flow path fornegligible pressure drop• Open to close in 1/4 turn• Offset handle allows clearance for easy operation

Accessories

• Valve locking kits and valve handles are availablefor the BVC2 Series

Construction

• Carbon steel body with trivalent plating• Zinc alloy handle• Forged steel option available• Fitted with NBR and POM seals as standard• Also available in AISI 316 stainless steel(See BVS2 Series)

Applications

• Construction• Mobile Hydraulics• Test Equipment• Machine Tools• General Hydraulics• Agricultural

AVAILABLE SEALS AND TEMPERATURE RANGE

All carbon steel products have Nitrile Butadiene Rubber seals fitted as standard. All stainless steel products have Fluoro-elastomer Rubber (Viton®) seals fitted as standard. Special seal materials available on request.

0°

106°C 223°F

Nitrile

120°C 248°F

EPDM

200°C 392°F

Viton®

300°C 572°F

Kalrez®

0°

-20°C -4°F

Viton®

-25°C -13°F

Kalrez®

-40°C -40°F

Nitrile

-50°C -58°F

EPDM

Abbreviation Trade Name Chemical Name Min Temp. Max Temp.
NBR XNBR Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® Nitrile Butadiene Rubber Carboxylated Nitrile Rubber -40°C (-40°F) 106°C (223°F)
FKM (FPM) Dai-el®, Fluorel®, Tecnoflon®, Viton® Fluoro-elastomer Rubber -20°C (-4°F) 200°C (392°F)
EPR EPDM Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® Ethylene Propylene Copolymer Ethylene Propylene Terpolymer -50°C (-58°F) 120°C (248°F)
FVMQ Silastic 1S®, FSE® Fluorosilicone Rubber -65°C (-85°F) 170°C (338°F)
FFKM Perlast®, Kalrez®, Chemraz®, Kaflon® Perfluoroelastomer -25°C (-13°F) 300°C (572°F)
