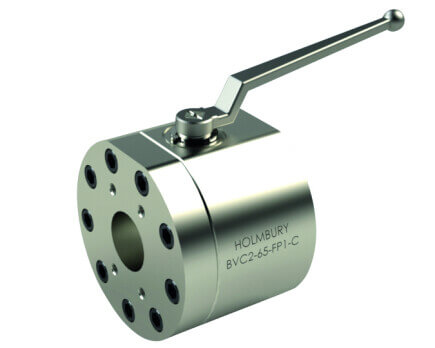

BVC2 ISO 6162 (Integrated SAE Flanged Port 61/62)

DocumentDownload Datasheet

BVC2 ISO 6162 (Integrated SAE Flanged Port 61/62)

Construction ApplicationsIndustrial Applications

Holmbury’s BVC2 Series two-way high-pressure ball valves are designed to suit a wide range of applications. These valves should not be used as flow control valves and should therefore always be fully open or closed.
Carbon Steel Trivalent Materials
Ball ValvesBVC2 ISO 6162 (Integrated SAE Flanged Port 61/62)

Features

• Floating ball design maximises sealing • Full bore valves provide unrestricted flow path for negligible pressure drop • Open to close in 1/4 turn • Offset handle allows clearance for easy operation

Accessories

 • Valve locking kits and valve handles are available for the BVC2 Series

Construction

• Carbon steel body with trivalent plating • Zinc alloy handle • Forged steel option available • Fitted with NBR and POM seals as standard • Also available in AISI 316 stainless steel (See BVS2 Series)

Applications

• Construction • Mobile Hydraulics • Test Equipment • Machine Tools • General Hydraulics • Agricultural

AVAILABLE SEALS AND TEMPERATURE RANGE

All carbon steel products have Nitrile Butadiene Rubber seals fitted as standard. All stainless steel products have Fluoro-elastomer Rubber (Viton®) seals fitted as standard. Special seal materials available on request.

0°

106°C 223°F

Nitrile

120°C 248°F

EPDM

200°C 392°F

Viton®

300°C 572°F

Kalrez®

0°

-20°C -4°F

Viton®

-25°C -13°F

Kalrez®

-40°C -40°F

Nitrile

-50°C -58°F

EPDM

Abbreviation Trade Name Chemical Name Min Temp. Max Temp.
NBR XNBR Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® Nitrile Butadiene Rubber Carboxylated Nitrile Rubber -40°C (-40°F) 106°C (223°F)
FKM (FPM) Dai-el®, Fluorel®, Tecnoflon®, Viton® Fluoro-elastomer Rubber -20°C (-4°F) 200°C (392°F)
EPR EPDM Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® Ethylene Propylene Copolymer Ethylene Propylene Terpolymer -50°C (-58°F) 120°C (248°F)
FVMQ Silastic 1S®, FSE® Fluorosilicone Rubber -65°C (-85°F) 170°C (338°F)
FFKM Perlast®, Kalrez®, Chemraz®, Kaflon® Perfluoroelastomer -25°C (-13°F) 300°C (572°F)
