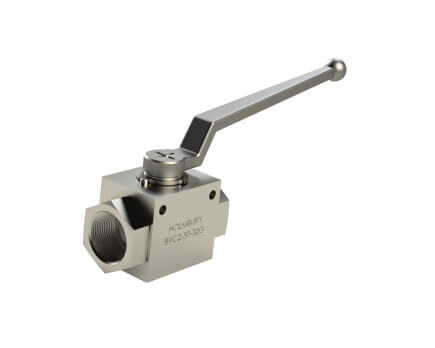

BVC2 Series (BSPP/NPT/SAE/JIC)

DocumentDownload Datasheet

Two way high pressure ball valves

Construction ApplicationsDemolition ApplicationsIndustrial ApplicationsAgricultural ApplicationsForestry Applications

Holmbury’s BVC 2 Series two way high pressure ball valves are designed to suit a wide range of applications. These valves should not be used as flow control valves and should therefore always be fully open or closed.
Speciality Coupling TechSpeciality Coupling
Carbon Steel Trivalent Materials
Ball ValvesBVC2 Series (BSPP/NPT/SAE/JIC)

Features

  • Floating ball design maximises sealing
  • Full bore valves provide unrestricted flow path for negligible pressure drop
  • Open to close in 1/4 turn
  • Offset handle allows clearance for easy operation

Accessories

  • Valve Locking Kits and Valve Handles are available for the BVC 2 Series

Construction

  • Carbon steel with trivalent plating
  • Zinc Alloy handle
  • Forged steel option available
  • Fitted with Nitrile & POM seals as standard
  • Also available in AISI 316 stainless steel (See BVS 2 Series)
  • Metric and flanged available on request

Applications

  • General hydraulic systems
  • Machine tools
  • Test equipment
  • Agricultural
  • Mobile hydraulics

AVAILABLE SEALS AND TEMPERATURE RANGE

All carbon steel products have Nitrile Butadiene Rubber seals fitted as standard. All stainless steel products have Fluoro-elastomer Rubber (Viton®) seals fitted as standard. Special seal materials available on request.

0°

106°C 223°F

Nitrile

120°C 248°F

EPDM

200°C 392°F

Viton®

300°C 572°F

Kalrez®

0°

-20°C -4°F

Viton®

-25°C -13°F

Kalrez®

-40°C -40°F

Nitrile

-50°C -58°F

EPDM

Abbreviation Trade Name Chemical Name Min Temp. Max Temp.
NBR XNBR Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® Nitrile Butadiene Rubber Carboxylated Nitrile Rubber -40°C (-40°F) 106°C (223°F)
FKM (FPM) Dai-el®, Fluorel®, Tecnoflon®, Viton® Fluoro-elastomer Rubber -20°C (-4°F) 200°C (392°F)
EPR EPDM Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® Ethylene Propylene Copolymer Ethylene Propylene Terpolymer -50°C (-58°F) 120°C (248°F)
FVMQ Silastic 1S®, FSE® Fluorosilicone Rubber -65°C (-85°F) 170°C (338°F)
FFKM Perlast®, Kalrez®, Chemraz®, Kaflon® Perfluoroelastomer -25°C (-13°F) 300°C (572°F)
