BVC2 (Pneumatic Control Hydraulic Ball Valve)

Construction ApplicationsIndustrial ApplicationsAgricultural Applications

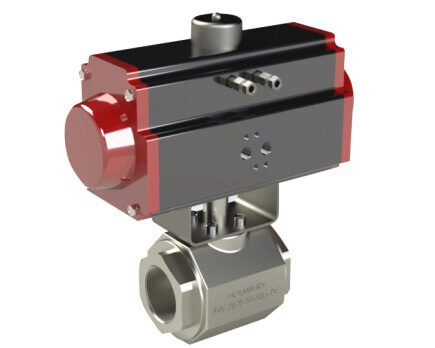

Holmburys’s BVC2 Series two-way high-pressure ball valve
with pneumatic control. Flow direction can be remotely
controlled via pneumatic ports mounted on the unit.
Speciality Coupling TechSpeciality Coupling
Carbon Steel Trivalent Materials
Ball ValvesBVC2 Series (Pneumatic Control Hydraulic Ball Valve)

Features

• Pneumatically controlled flow direction• Floating ball design maximises sealing• Full bore valves provide unrestricted flow path   for negligible pressure drop• Open to close in 1/4 turn

Construction

• Carbon steel body with trivalent plating• Zinc alloy handle• Forged steel option available• Fitted with NBR and POM seals as standard• Also available in AISI 316 stainless steel  (See BVS2 Series)

Applications

• Construction• Mobile Hydraulics• Test Equipment• Machine Tools• General Hydraulics• Agricultural

AVAILABLE SEALS AND TEMPERATURE RANGE

All carbon steel products have Nitrile Butadiene Rubber seals fitted as standard. All stainless steel products have Fluoro-elastomer Rubber (Viton®) seals fitted as standard. Special seal materials available on request.

0°

106°C 223°F

Nitrile

120°C 248°F

EPDM

200°C 392°F

Viton®

300°C 572°F

Kalrez®

0°

-20°C -4°F

Viton®

-25°C -13°F

Kalrez®

-40°C -40°F

Nitrile

-50°C -58°F

EPDM

Abbreviation Trade Name Chemical Name Min Temp. Max Temp.
NBR XNBR Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® Nitrile Butadiene Rubber Carboxylated Nitrile Rubber -40°C (-40°F) 106°C (223°F)
FKM (FPM) Dai-el®, Fluorel®, Tecnoflon®, Viton® Fluoro-elastomer Rubber -20°C (-4°F) 200°C (392°F)
EPR EPDM Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® Ethylene Propylene Copolymer Ethylene Propylene Terpolymer -50°C (-58°F) 120°C (248°F)
FVMQ Silastic 1S®, FSE® Fluorosilicone Rubber -65°C (-85°F) 170°C (338°F)
FFKM Perlast®, Kalrez®, Chemraz®, Kaflon® Perfluoroelastomer -25°C (-13°F) 300°C (572°F)
