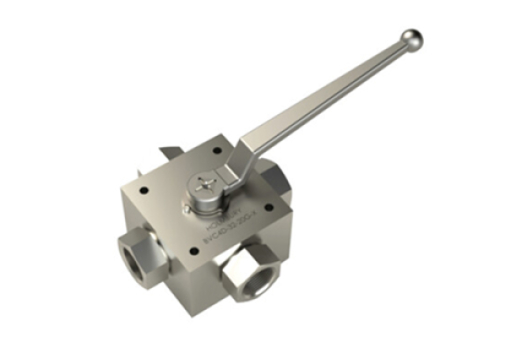

BVC3, BVC4 Series
Download DatasheetBVC3, BVC4 Series
Holmbury’s BVC3 and BVC4 Series high-pressure ball valves
are designed to suit a wide range of applications. These
valves should not be used as flow control valves and should
therefore always be fully open or closed.
are designed to suit a wide range of applications. These
valves should not be used as flow control valves and should
therefore always be fully open or closed.
Features
• Floating ball design maximises sealing• Full bore valves provide unrestricted flow pathfor negligible pressure drop• Open to close in 1/4 turn• Offset handle allows clearance for easy operation
Accessories
• Valve locking kits and valve handles are available forthe BVC3, BVC4 Series
Construction
• Carbon steel body with trivalent plating• Zinc alloy handle• Forged steel option available• Fitted with NBR and POM seals as standard• Also available in AISI 316 stainless steel(See BVS3, BVS4 Series)
Applications
• Construction• Mobile Hydraulics• Test Equipment• Machine Tools• General Hydraulics• Agricultural
AVAILABLE SEALS AND TEMPERATURE RANGE
All carbon steel products have Nitrile Butadiene Rubber seals fitted as standard. All stainless steel products have Fluoro-elastomer Rubber (Viton®) seals fitted as standard. Special seal materials available on request.
0°
Nitrile
EPDM
Viton®
Kalrez®
0°
Viton®
Kalrez®
Nitrile
EPDM
| Abbreviation | Trade Name | Chemical Name | Min Temp. | Max Temp. |
| NBR XNBR | Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® | Nitrile Butadiene Rubber Carboxylated Nitrile Rubber | -40°C (-40°F) | 106°C (223°F) |
| FKM (FPM) | Dai-el®, Fluorel®, Tecnoflon®, Viton® | Fluoro-elastomer Rubber | -20°C (-4°F) | 200°C (392°F) |
| EPR EPDM | Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® | Ethylene Propylene Copolymer Ethylene Propylene Terpolymer | -50°C (-58°F) | 120°C (248°F) |
| FVMQ | Silastic 1S®, FSE® | Fluorosilicone Rubber | -65°C (-85°F) | 170°C (338°F) |
| FFKM | Perlast®, Kalrez®, Chemraz®, Kaflon® | Perfluoroelastomer | -25°C (-13°F) | 300°C (572°F) |
